LTC3207/LTC3207-1
PIN FUNCTIONS
CAMHL (Pin 8): Selects CAM high register when asserted
high and CAM low register when low. The high to low
transition automatically resets the charge pump mode to
1x. The logic level for CAMHL is referenced to DV CC . If
unused, the pin should be connected to ground.
DV CC (Pin 9): Supply Voltage for All Digital I/O Lines. This
pin sets the logic reference level of the device. DV CC will
reset the data registers when set below the undervoltage
lockout threshold which is the recommended method for
resetting the part after power up. A 0.1μF X5R or X7R
ceramic capacitor should be connected to ground.
SCL (Pin 10): I 2 C Clock Input. The logic-level for SCL is
referenced to DV CC .
SDA (Pin 11): Input Data for the Serial Port. Serial data
is shifted in one bit per clock to control the device. The
logic-level is referenced to DV CC .
C1P, C2P, C1M, C2M (Pin 24, 23, 20, 19): Charge Pump
Flying Capacitor Pins. A 2.2μF X7R or X5R ceramic ca-

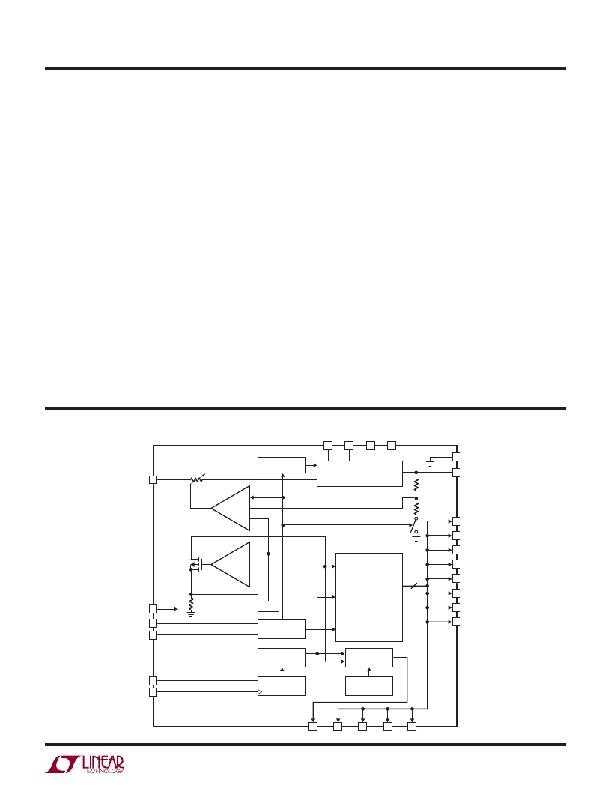

BLOCK DIAGRAM
pacitor should be connected from C1P to C1M and C2P
to C2M.
V BAT (Pin 21): Supply Voltage for the Entire Device. This
pin must be bypassed with a single 2.2μF low ESR ceramic
capacitor.
ENU (Pin 22): Input. Used to enable or disable the prese-
lected ULED outputs. When the pin is toggled from low
(disable) to high (enable), the device illuminates the prese-
lected LEDs. When ENU is controlling selected outputs and
other outputs have been enabled the charge pump mode
will be reset to 1x on the falling edge of ENU. When ENU
is controlling selected outputs and no other outputs are
active the part will go from enabled to shutdown. The ENU
logic-level is referenced to DV CC . This pin is connected to
ground if unused.
Exposed Pad (Pin 25): Ground. The Exposed Pad must
be soldered to PCB ground.
19
20
23
24
850kHz
C2M
C1M
C2P
C1P
GND
25
21
V BAT
OSCILLATOR
CHARGE PUMP
CPO
1
ULED1
ULED2
ULED3
ULED4
2
3
4
5
12 UNIVERSAL
CURRENT SOURCES
12
ULED5
ULED6
6
12
9
22
8
DV CC
ENU
CAMHL
1.22V
CONTROL
LOGIC
AND DACS
ULED7
ULED8
13
14
MASTER/SLAVE
REG
CAM CURRENT
SOURCE
11
10
SDA
SCL
SHIFT REGISTER
2 SECOND
SAFETY TIMER
CAM
ULED12
ULED11
ULED10
ULED9
7
18
17
16
15
3207 BD
3207fc
